5 AXIS VERTICAL MACHINING CENTER MALAYSIA — CNC MACHINING SOLUTIONS FROM HASIL KARYA
A 5 axis vertical machining center cuts complex parts in fewer setups by moving the tool and workpiece along five axes, which improves accuracy on contoured surfaces and reduces handling time. Hasil Karya supplies CNC milling machines and vertical machining centers to manufacturers in Malaysia, with 22 in-house service engineers and a spare parts warehouse in Selangor. Tell us your part size, material and budget, and our team will recommend and source a suitable 5 axis machine for you.
5 AXIS VERTICAL MACHINING CENTER MALAYSIA — OVERVIEW AND KEY BENEFITS
A 5 axis machining center adds two rotary axes to the usual X, Y and Z movement. This lets the cutting tool reach a part from many angles without removing and re-clamping it. The main benefits are:
- Fewer setups: complex parts can often be finished in one clamping, which saves handling time and reduces positioning errors.
- Better accuracy on contoured surfaces: the tool can stay at the best angle to the surface.
- Shorter tools and a better surface finish: tilting the part allows shorter, more rigid tools, which reduces vibration.

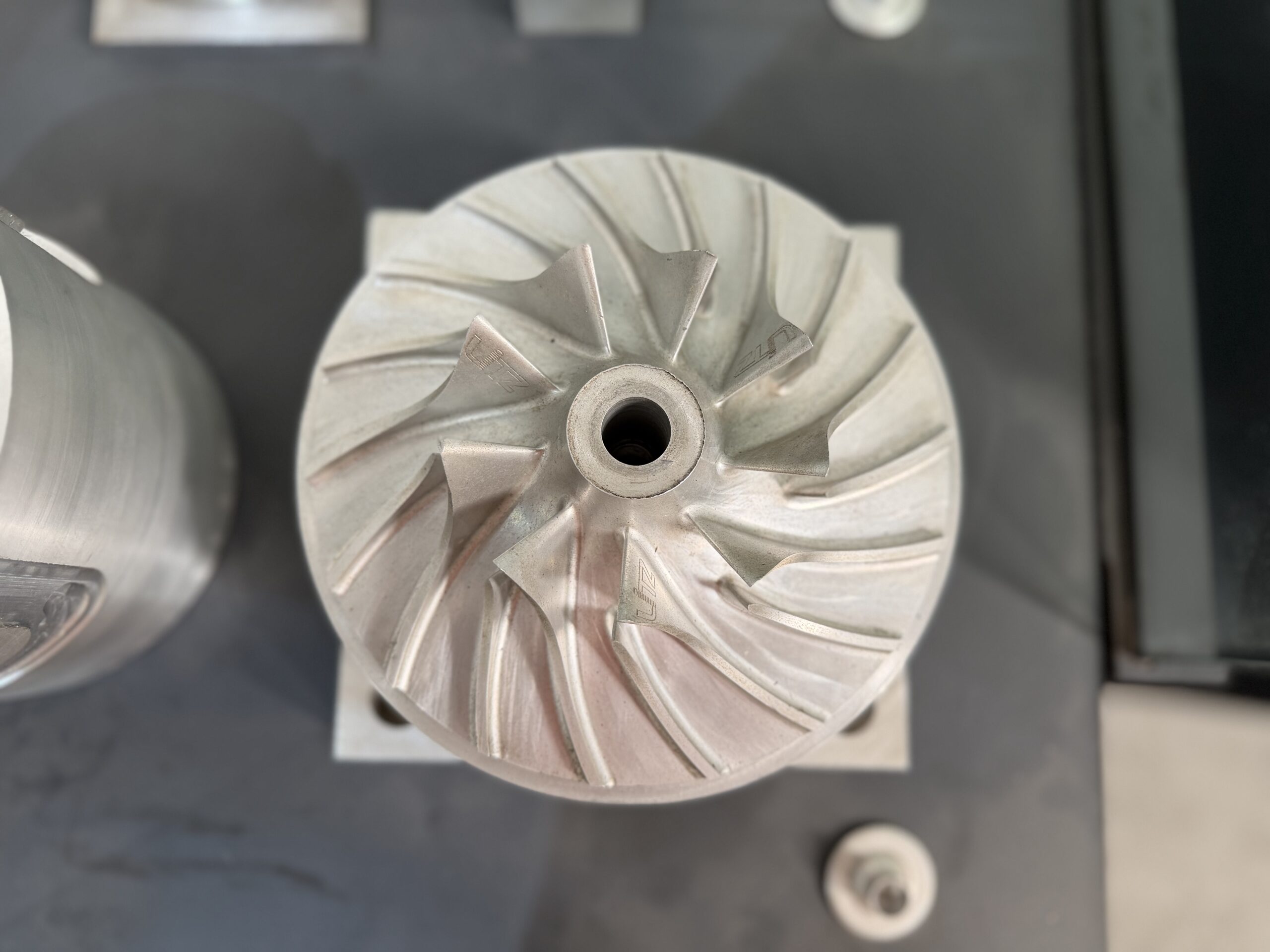

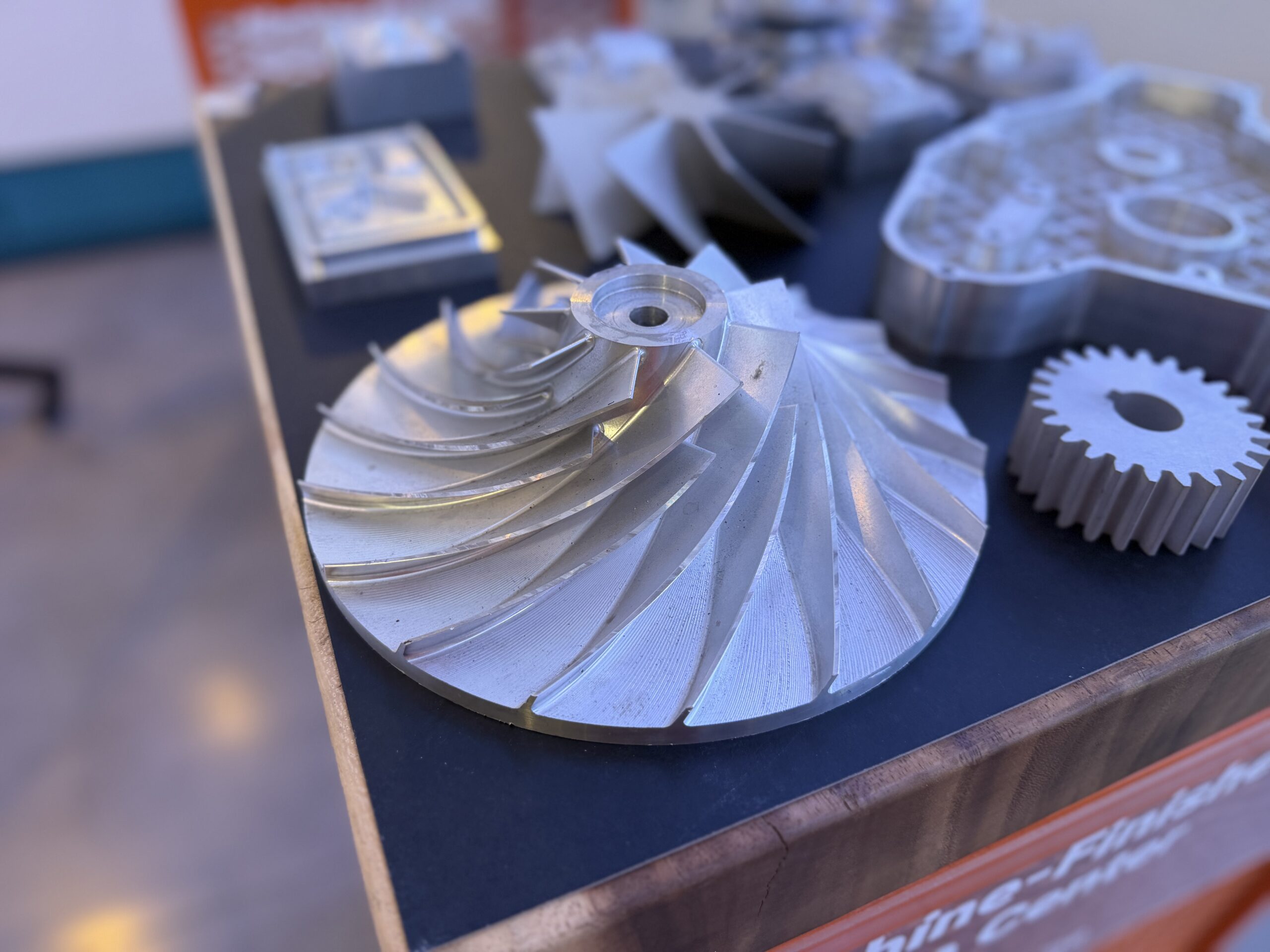

- Suited to complex shapes such as impellers, housings and mold cavities.
5 AXIS VS 3 AXIS VERTICAL MACHINING CENTER — WHAT IS THE DIFFERENCE?
| 3 axis | 5 axis | |
|---|---|---|
| Movement | X, Y and Z only | X, Y, Z plus two rotary axes |
| Setups | Several setups for parts with features on different sides | Often one setup for the whole part |
| Best for | Simple parts and flat features | Contoured surfaces and complex shapes |
| Cost and programming | Lower machine cost, simpler programming | Higher machine cost, needs 5 axis CAM programming |
Not every job needs 5 axis. If your parts are mostly flat or prismatic, a 3 axis machine such as the Vertical Machining Center V13 may be enough. Send us your part drawings and we will advise which suits you.
5 AXIS CNC MILLING MACHINE FOR SALE IN MALAYSIA — ENQUIRE FOR MODELS & SOURCING

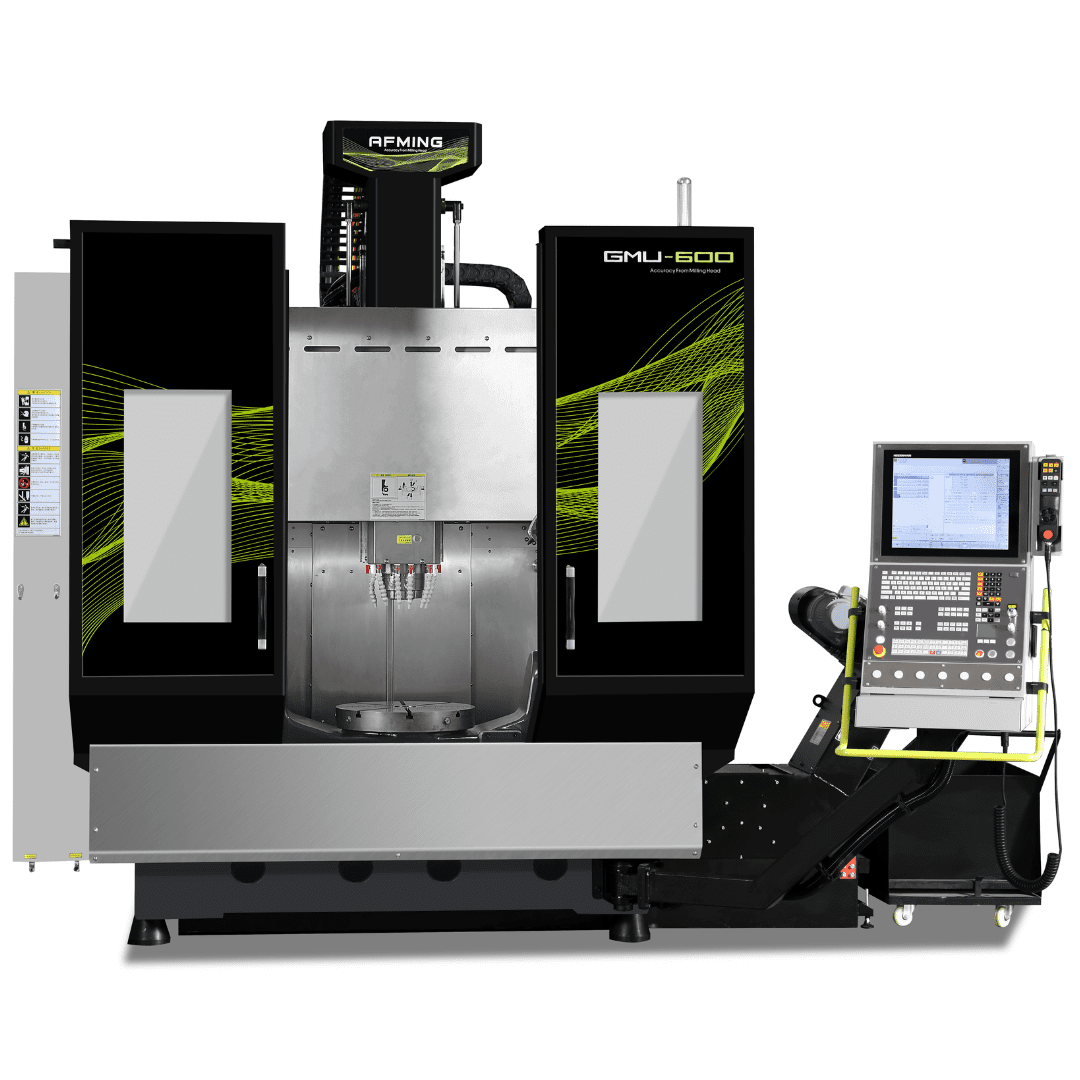

Hasil Karya sources 5 axis CNC milling machines for manufacturers in Malaysia. One model we offer is the Afming GMU-600, a small 5 axis CNC machine that saves floor space while keeping precision. See the full GMU-600 product page for specifications.
If you need a different size or capacity, we can source other 5 axis models to match your requirements. To recommend the right machine, please tell us:
- Part size and weight
- Material (for example stainless steel, mild steel or aluminium)
- Required tolerance and surface finish
- Production volume
- Budget and target delivery time
5 AXIS MACHINING APPLICATIONS — MOLD & DIE, ELECTRONICS & SEMICONDUCTOR, OIL & GAS
5 axis machining is used where parts have complex geometry or need tight accuracy across several faces. Typical applications include:
- Mold & die: cavities, cores and contoured surfaces. Read more about CNC milling for mold & die making.
- Electronics & semiconductor: precision housings and fixtures. Read more about CNC milling for electronics & semiconductor.
- Oil & gas: precision components made from tough materials. Read more about CNC milling for oil & gas components.
SEND AN ENQUIRY
Ready to discuss your project? Send us your part details and our team will recommend a suitable 5 axis machine and quote you.
